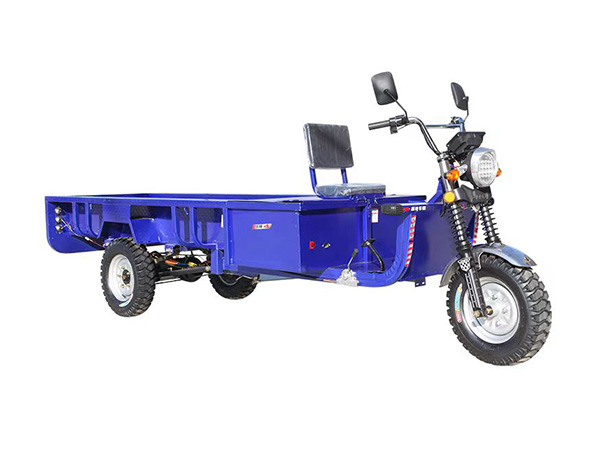

Long Flatbed Electric Tricycle

1.Product Overview

Our Long Flatbed Electric Tricycle is a robust,zero-emission workhorse engineered for heavy-load transportation in factories,warehouses,construction sites,farms,and urban logistics.Featuring an extra-long,flat cargo platform,it offers exceptional stability,ease of loading/unloading,and high payload capacity—making it the ideal electric replacement for diesel carts and small trucks.

2.Key Features&Advantages

Extra-Long Flatbed Design

The flatbed size ranges from 2.0m to 3.0m in length and 1.0m to 1.2m in width,with customization available to meet specific needs.It is equipped with a 1.5mm thick anti-slip steel plate and reinforced crossbeams for enhanced durability.The low deck height facilitates effortless loading of long materials such as pipes,panels,and boxes,while multiple tie-down points ensure cargo is secured safely during transport.

Powerful&Efficient Drive System

Powered by a 60V/72V 1500W~3000W brushless DC motor,which is waterproof and high-torque,ensuring reliable performance even in harsh conditions.The tricycle is compatible with 60V/72V 100Ah~150Ah maintenance-free lead-acid or lithium batteries(optional),providing a range of 80~100km per full charge.It has a maximum speed of 25~40km/h(adjustable)and a climbing capacity of up to 30°when fully loaded,adapting to various terrain conditions.

Heavy-Duty Construction

Built with a high-strength carbon steel frame using automotive-grade welding,ensuring sturdiness and longevity.It is equipped with an integrated rear axle and heavy-duty leaf spring suspension to handle heavy loads smoothly.The front and rear hydraulic brakes,combined with a hand brake,provide triple safety protection.Large pneumatic tires(4.00-12 or 5.00-12)are adopted for excellent performance on rough terrain.

Ergonomic&Safe Operation

The tricycle features a comfortable padded seat with a backrest for long-time operation comfort.It is equipped with bright LED headlights,tail lights,and turn signals for safe operation in low-light conditions.A digital dashboard displays the battery indicator and speed meter,allowing the operator to monitor the tricycle’s status in real time.User-friendly controls including throttle,foot brake,and reverse gear make operation simple and intuitive,while the low center of gravity ensures maximum stability during transport.

Eco-Friendly&Cost-Effective

With zero emissions and quiet operation,it is environmentally friendly and suitable for use in indoor and outdoor environments.The running cost is as low as~$0.01/km,significantly lower than the$0.30+/km cost of diesel vehicles.Additionally,it requires minimal maintenance,as there is no engine or oil changes needed,reducing long-term operational costs.

3.Technical Specifications(Standard Model)

The standard model has an overall dimension of 3800 x 1100 x 1350 mm(LxWxH),with a flatbed size of 2800 x 1100 mm and a payload capacity of 1000kg~1500kg.It is powered by a 60V 2000W brushless motor and equipped with a 60V 120Ah lead-acid battery,requiring 8~10 hours for a full charge.The tire configuration is front:3.75-12 and rear:4.00-12,with a reinforced steel frame and hydraulic disc brakes(front+rear)for safety.The rear leaf spring suspension ensures smooth driving even on uneven roads.

4.Applications

This long flatbed electric tricycle is widely applicable in various scenarios,including factories and warehouses for material handling and long parts transport;construction sites for delivering bricks,sand,steel,and tools;agriculture for hauling farm produce,fodder,and equipment;urban logistics for last-mile delivery and retail restocking;as well as mining and industrial areas for transporting heavy cargo in narrow spaces.
